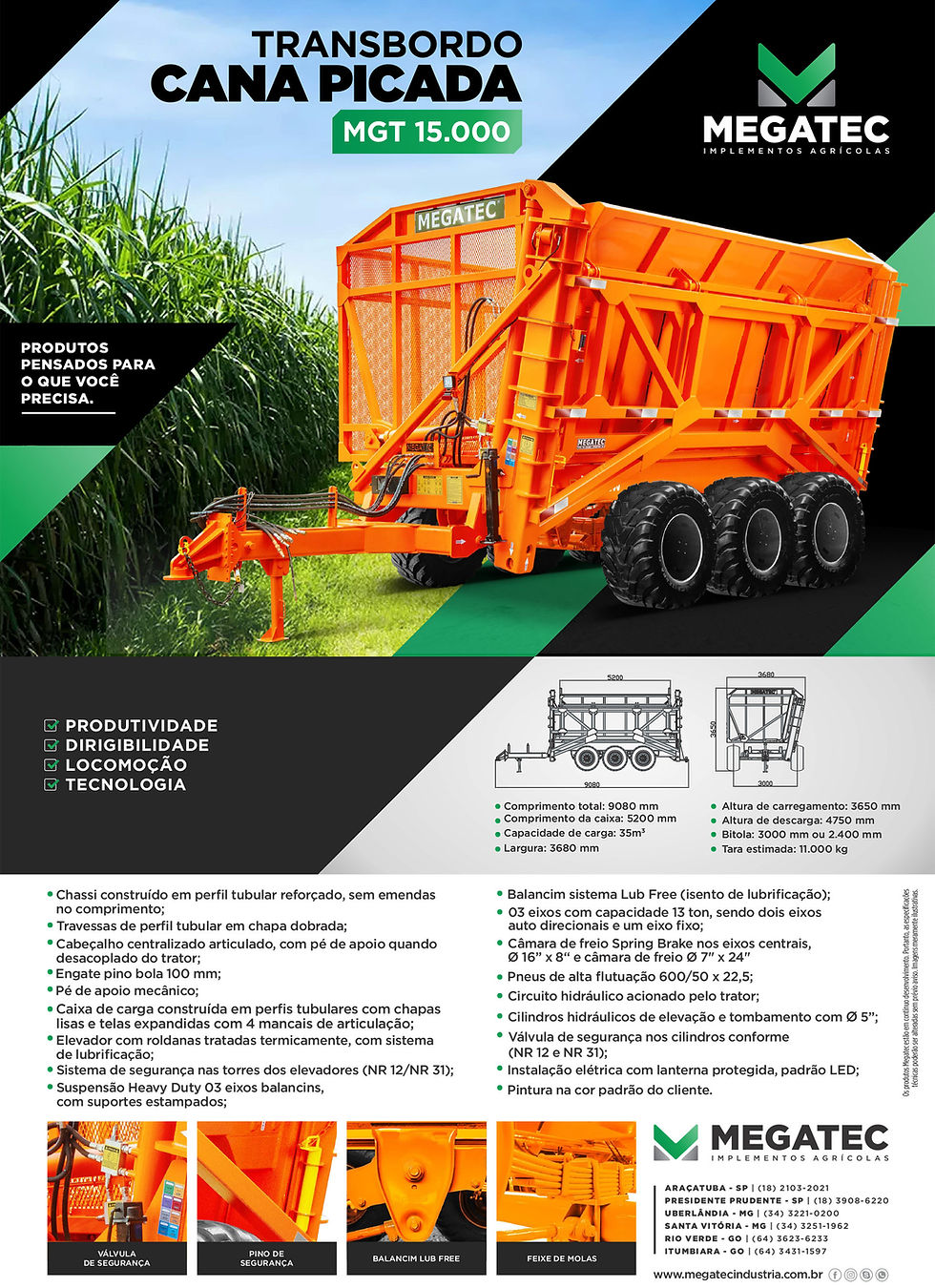

Total lenght: 9,080 mm
Box lenght: 5,200 mm
Cargo capacity: 35 m³
Width: 3,680 mm
Loading height: 3,650 mm
Unloading height: 4,750 mm
Gage: 3,000 mm or 2,400 mm
Estimated Tare: 11,000 kg

​

• Chassis made in reinforced tube profile, no joints along the length;
• Tube profile transversal beams made in folded plate;
• Centered articulated head with support bracket when disengaged from the tractor;
• Ball pin hitch 100 mm;
• Mechanical support foot.
• Cargo box made in tube profiles with flat plates and expanded netting with 4 joint bearings;
• Lifter with heat-treated pulleys, lubrication system;
• Safety system in the lifter towers (NR12 and NR 31);
• Heavy Duty suspension, 03 shaft rocker arms, with stamped brackets;
• Lub Free rocker arm system;
• 03 shafts, 13 ton capacity, two self-guided shaft and one fixed shaft;
• Spring Brake chamber in the central shaft, diameter 16” x 8”, and brake chamber diameter 7” x 24”;
• High-float tires 600/50 x 22.5;
• Hydraulic circuit activated by the tractor;
• Lifting and tilting hydraulic cylinders, diameter 5”;
• Safety valve in the cylinders according to (NR12 and NR31);
• Electric installation with shielded lanterns, LED standard;
• Painting as per customer standard color.
